VISUAL Emergency LED Downlights

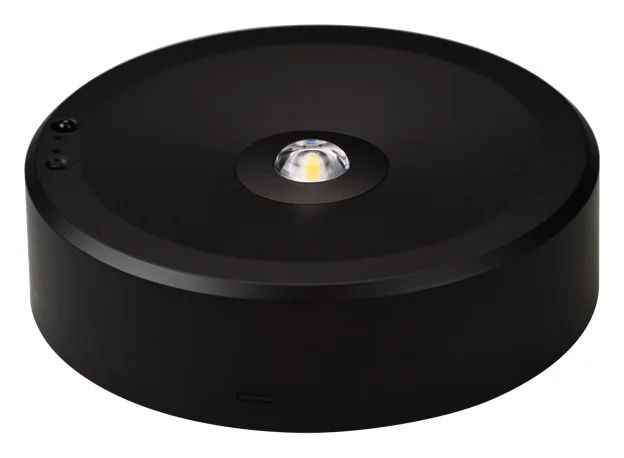

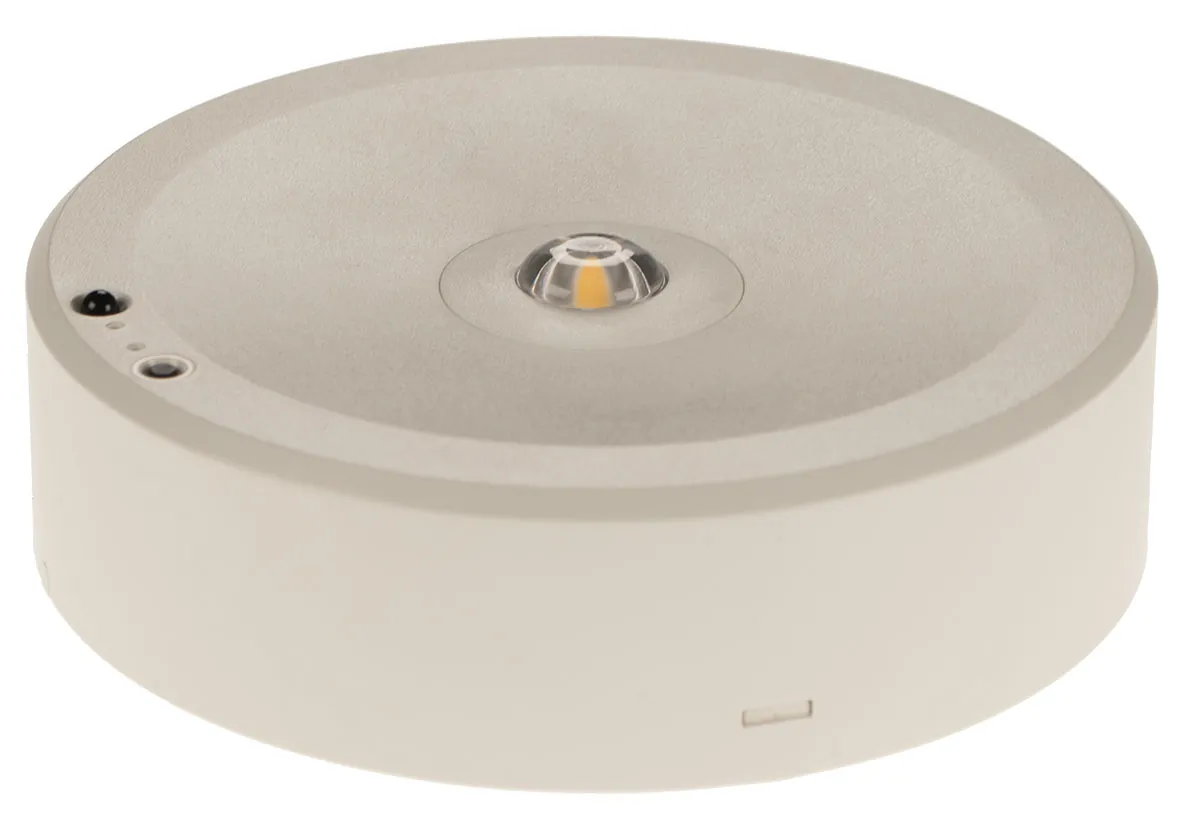

Our LIA certified Emergency Downlight range includes a surface mount version (VISUAL) and a recessed mount version (MAX). Both versions are non-maintained and offer a staggering 325 lumens for the 3W version, all thanks to the design and technology that drives all our products.
All emergency downlights, recessed and surface mounted, benefit from a range of well-designed optics (open area, corridor and spot angles) to provide a wide variety of applications and installations. These can be easily applied for corridors, rooms, paths, open-space areas and point of emphasis.

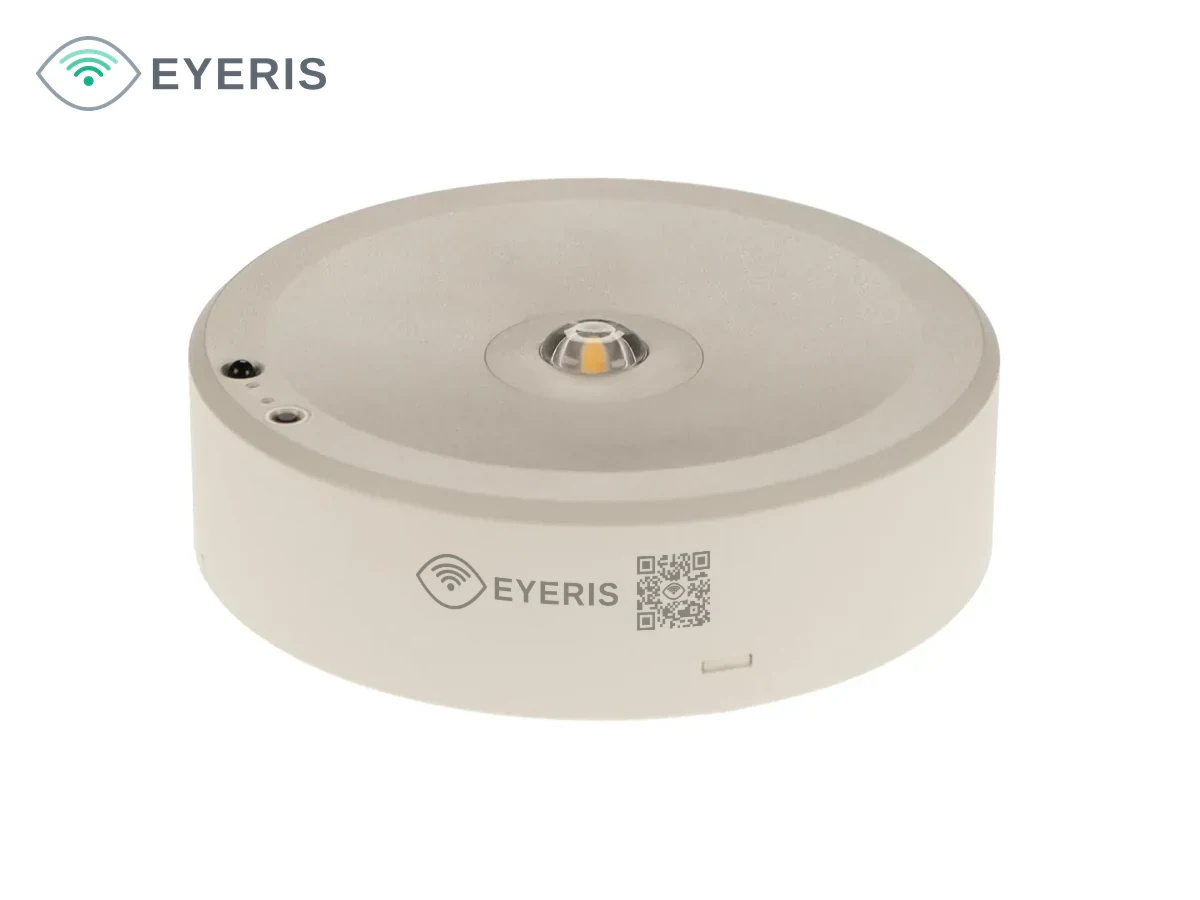

VISUAL downlights comply with current standards, including BS EN 60598-2-22, and come with the full range of test methods: Manual Test (MT), Advanced Self-Test (AST) and Eyeris automated testing.
*To facilitate the emergency lighting design according to BS5266 these products are manufactured to be fully compliant with BS 60598-2-22 standard and are designed to IP20 Ingress Protection, meaning that they can be used safely in indoor applications.
Download the datasheet, photometry files (IES and LDT) and spacing tables for each product below.
| Part number | Colour | Power Output | Lumen output | Lens | Construction | Configuration | Testing facility | Downloads |
|---|---|---|---|---|---|---|---|---|
| DLB3-OA1-LR | White | 3W | 325lm | Open area (155°) | IP20 & IP54 front face only | Non-maintained | Eyeris | |
| DLB3-OA1-LR-BLK | Black | 3W | 325lm | Open area (155°) | IP20 & IP54 front face only | Non-maintained | Eyeris | |
| DLB3-C-LR | White | 3W | 310lm | Corridor | IP20 & IP54 front face only | Non-maintained | Eyeris | – |
| DLB3-C-LR-BLK | Black | 3W | 310lm | Corridor | IP20 & IP54 front face only | Non-maintained | Eyeris | – |
| DLB3-S45-LR | White | 3W | 325lm | Spot (45°) | IP20 & IP54 front face only | Non-maintained | Eyeris | |
| DLB3-S45-LR-BLK | Black | 3W | 325lm | Spot (45°) | IP20 & IP54 front face only | Non-maintained | Eyeris | |
| DLB1.5-OA2-MT | White | 1.5W | 200lm | Open area (125°) | IP20 & IP54 front face only | Non-maintained | Manual Test (MT) | |
| DLB1.5-OA2-AST | White | 1.5W | 200lm | Open area (125°) | IP20 & IP54 front face only | Non-maintained | Advanced Self Test (AST) | |
| DLB1.5-C-MT | White | 1.5W | 190lm | Corridor | IP20 & IP54 front face only | Non-maintained | Manual Test (MT) | |
| DLB1.5-C-AST | White | 1.5W | 190lm | Corridor | IP20 & IP54 front face only | Non-maintained | Advanced Self Test (AST) | |
| DLB3-OA1-MT | White | 3W | 325lm | Open area (155°) | IP20 & IP54 front face only | Non-maintained | Manual Test (MT) | |
| DLB3-OA1-AST | White | 3W | 325lm | Open area (155°) | IP20 & IP54 front face only | Non-maintained | Advanced Self Test (AST) | |
| DLB3-OA1-AST-BLK | Black | 3W | 325lm | Open area (155°) | IP20 & IP54 front face only | Non-maintained | Advanced Self Test (AST) | |
| DLB3-S45-MT | White | 3W | 325lm | Spot (45°) | IP20 & IP54 front face only | Non-maintained | Manual Test (MT) | |
| DLB3-S45-AST | White | 3W | 325lm | Spot (45°) | IP20 & IP54 front face only | Non-maintained | Advanced Self Test (AST) | |
| DLB3-S45-AST-BLK | Black | 3W | 325lm | Spot (45°) | IP20 & IP54 front face only | Non-maintained | Advanced Self Test (AST) | |
| DLB1.5-OA1-MT | White | 1.5W | – | Open area (155°) | IP20 & IP54 front face only | Non-maintained | Manual Test (MT) | – |
| DLB1.5-OA1-AST | White | 1.5W | – | Open area (155°) | IP20 & IP54 front face only | Non-maintained | Advanced Self Test (AST) | – |
| DLB3-C-MT | White | 3W | 310lm | Corridor | IP20 & IP54 front face only | Non-maintained | Manual Test (MT) | – |
| DLB3-C-AST | White | 3W | 310lm | Corridor | IP20 & IP54 front face only | Non-maintained | Advanced Self Test (AST) | – |
| DLB3-C-AST-BLK | Black | 3W | 310lm | Corridor | IP20 & IP54 front face only | Non-maintained | Advanced Self Test (AST) | – |
| DLB3-OA1-DL | White | 3W | 325lm | Open area (155°) | IP20 & IP54 front face only | Non-maintained | DALI-2 | – |
| DLB3-C-DL | White | 3W | 310lm | Corridor | IP20 & IP54 front face only | Non-maintained | DALI-2 | – |
| DLB3-S45-DL | White | 3W | 325lm | Spot (45°) | IP20 & IP54 front face only | Non-maintained | DALI-2 | – |
Questions
Are VISUAL downlights surface mounted?
Yes, VISUAL is our ceiling surface-mounted emergency downlight. For a recessed downlight, see MAX.
Which lenses do VISUAL downlights come with?
Open area (125° and 155°), corridor and spot (45°), for corridors, rooms, paths, open spaces and points of emphasis.
How much light do VISUAL downlights give?
At 1.5W, 200 lumens (open area, 125°) or 190 lumens (corridor). At 3W, 325 lumens (open area 155° and spot) or 310 lumens (corridor).
How long do VISUAL downlights last in a power cut?
3 hours. VISUAL downlights give constant emergency light for the full 3-hour duration, and the battery recharges in 8 hours (the first charge takes up to 16).
Can VISUAL be used in damp areas?
They are IP20, with IP54 on the front face only, and designed for indoor use. They are non-maintained: they light only when the mains fails.
Which test options do VISUAL downlights come in?
Manual Test (MT); Advanced Self-Test (AST); Eyeris automated testing (the 3W DLB3-OA1-LR, DLB3-C-LR and DLB3-S45-LR, white or black); and DALI-2. With AST the fitting tests itself: a 30-second functional test every week and a full duration test every 52 weeks. Test Regimes compares them.
Do VISUAL downlights come in black?
Yes, the 3W self-test and Eyeris models: DLB3-OA1-AST-BLK, DLB3-C-AST-BLK and DLB3-S45-AST-BLK, and the Eyeris DLB3-OA1-LR-BLK, DLB3-C-LR-BLK and DLB3-S45-LR-BLK. Every other model is white.
How far apart should VISUAL downlights be?
It depends on the mounting height and the light level needed: the spacing tables give it for each model. Our Lighting Design page shows the VISUAL 1.5W open area table as an example, and we give free design advice.
What warranty do VISUAL downlights have?
Up to 5 years on the luminaire and battery. Every product has 1 year as standard, and 5 years from the date of invoice once you register it within 6 months of purchase (a new product, bought from Z10 or an authorised reseller).
Where are the VISUAL datasheets and spacing tables?
On the Specifications & downloads tab, beside each model: its datasheet, and the IES and LDT photometric files and spacing tables where it has them. For help with a layout, ask for our free lighting design advice.
