Eyeris
Automated Testing
Eyeris keeps you compliant. Every connected emergency device on site is continuously monitored, and function and duration tests can run to your schedule.
Eyeris keeps the records: monitored, scheduled and evidenced, from a single site to an entire estate.
- Automated testing
- Compliance made simple
- LoRaWAN
- Total package: hardware and software
Emergency lighting is a life safety system
Eyeris gives you visualisation and alerting for every device: fewer visits, faster fixes, and a compliance record that is always current.

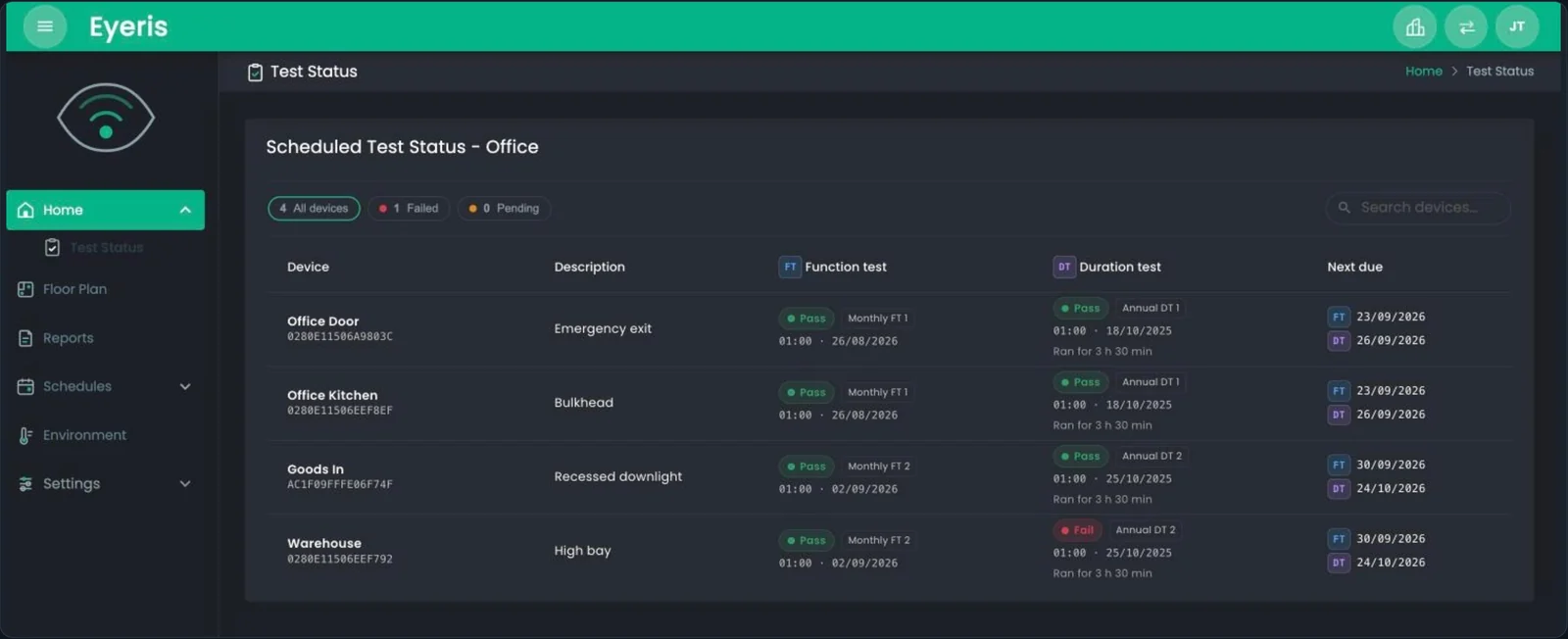

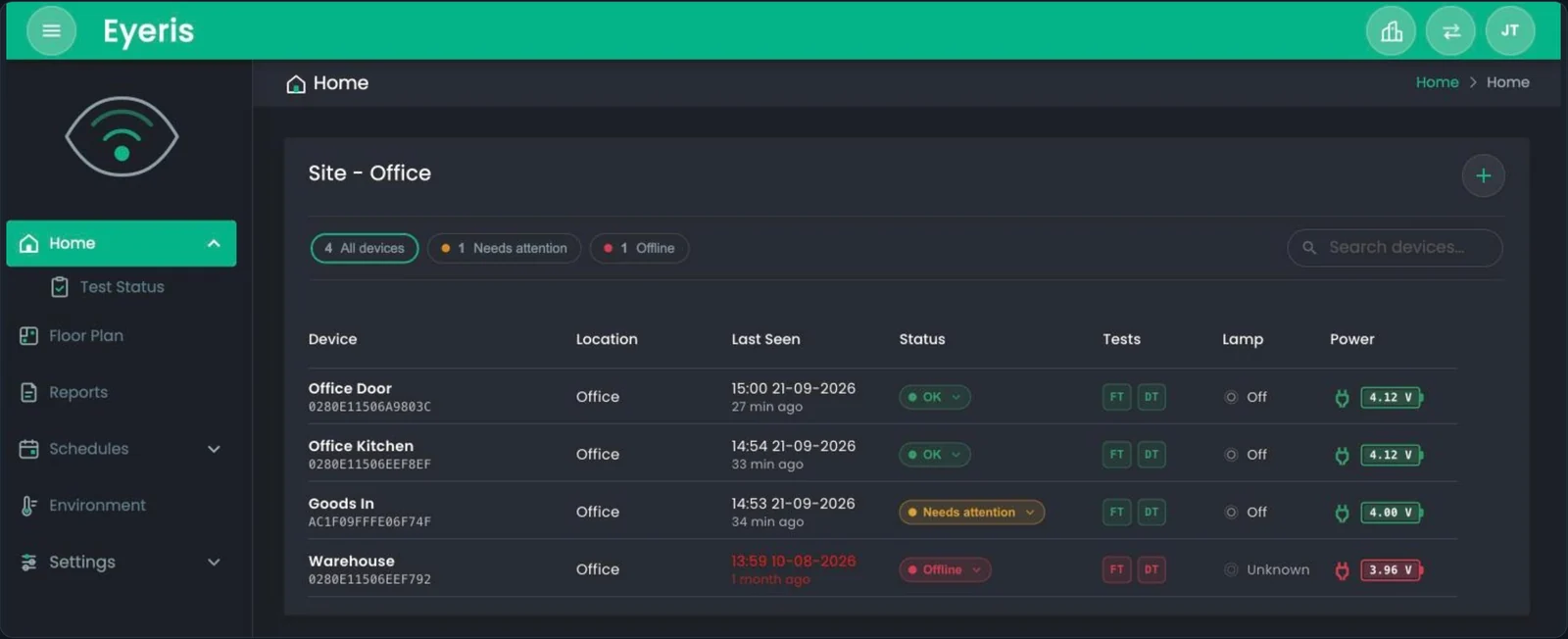

Live status
All devices report any change in status. The dashboard reflects the live state.
Alerts
Tests are scheduled and key users receive alerts, so failures are actioned quickly.
Compliance
A PDF report is stored for every function and duration test, ready to view, download or email.

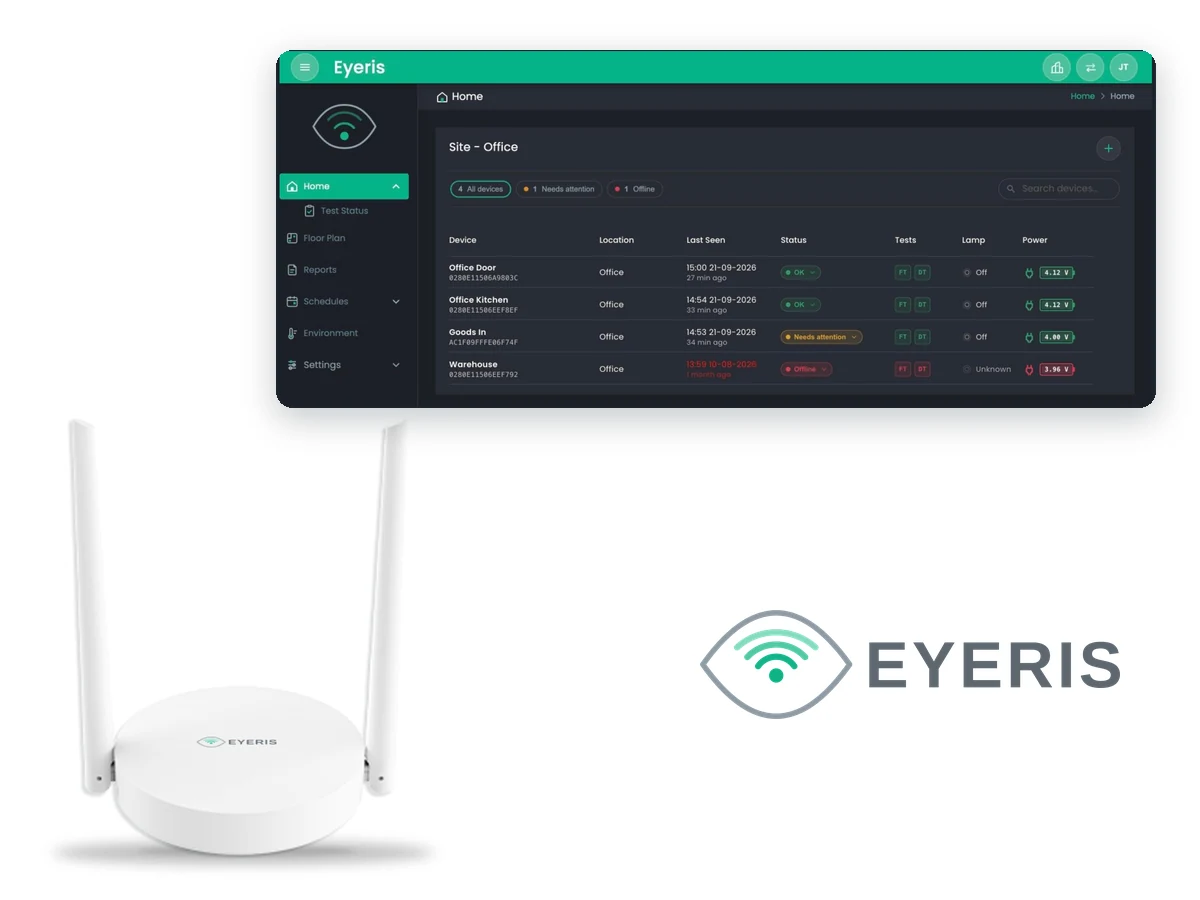

Devices, gateway, Eyeris Core
Devices
Each emergency device carries a LoRaWAN radio, reporting status, battery voltage and lamp state on licence-free spectrum. Long range, low power, no wiring.
Gateway
One gateway covers a small building; larger or awkward sites take several.* Each one collects from every device in range and backhauls over a single connection: Ethernet, Wi-Fi or 4G. See gateways
Eyeris Core
Holds the schedules, commands the tests, stores every result and serves the dashboard and the reports, in Eyeris Web (any browser) and the Eyeris Setup App (iOS and Android).
Eyeris automates the testing and record keeping. Routine visual inspection is still required for total compliance.
*Coverage subject to site survey.
Rollout
Scan it, name it, find it, test it
Eyeris does not require a specialist commissioning engineer with complex and expensive tools. Before or after installation, devices can be scanned and added to the platform with the Eyeris Setup App.
Scan
The device's QR code, or type in its Device EUI (NFC optional).
Name
Name, location and device type captured.
Locate
A unique light pattern identifies the device.

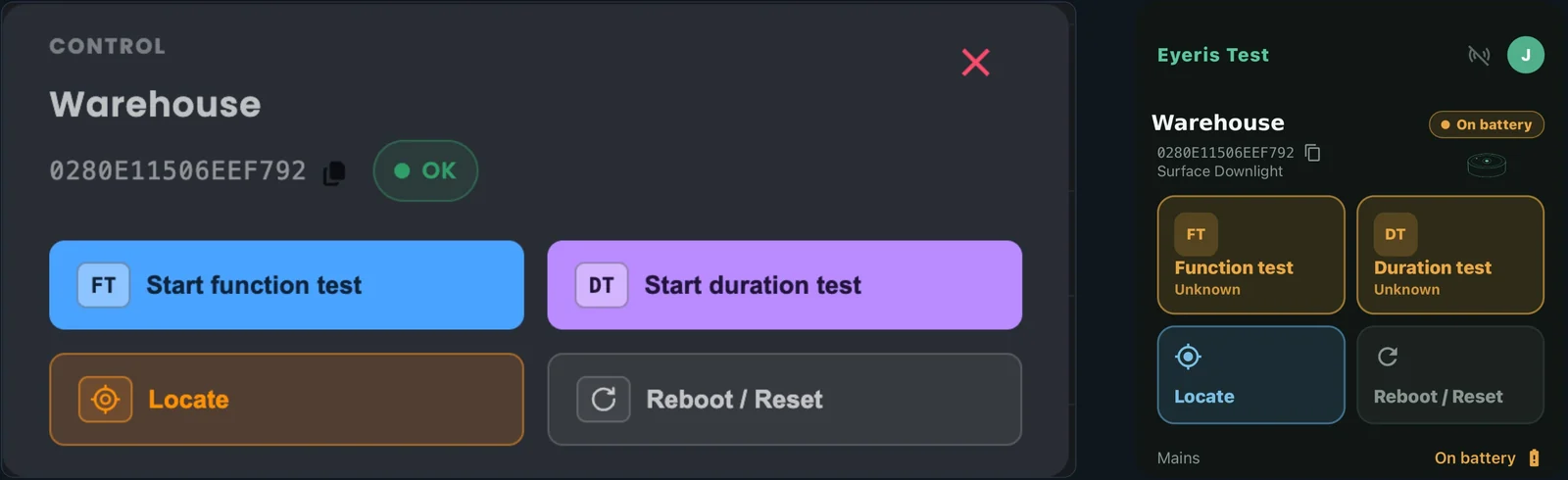

Test
Carry out an on-demand function test.
Maintain full compliance
Manual and self-test regimes offer no assurance that you will still have cover should an emergency occur following a discharge test.
Eyeris splits devices into groups, so the site maintains coverage in the event of an emergency. Groups allow testing in waves, never the whole site at once.

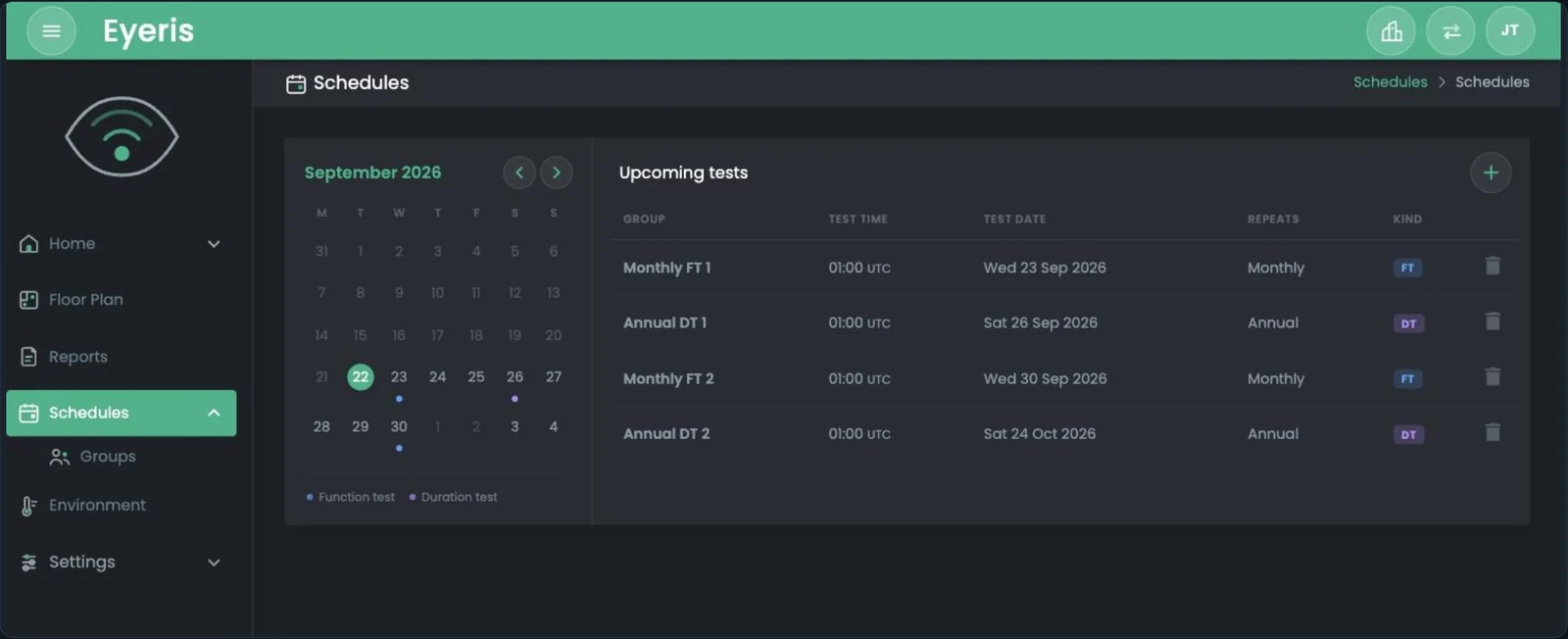

Function tests
Monthly or weekly
Duration tests
Annual or bi-annual

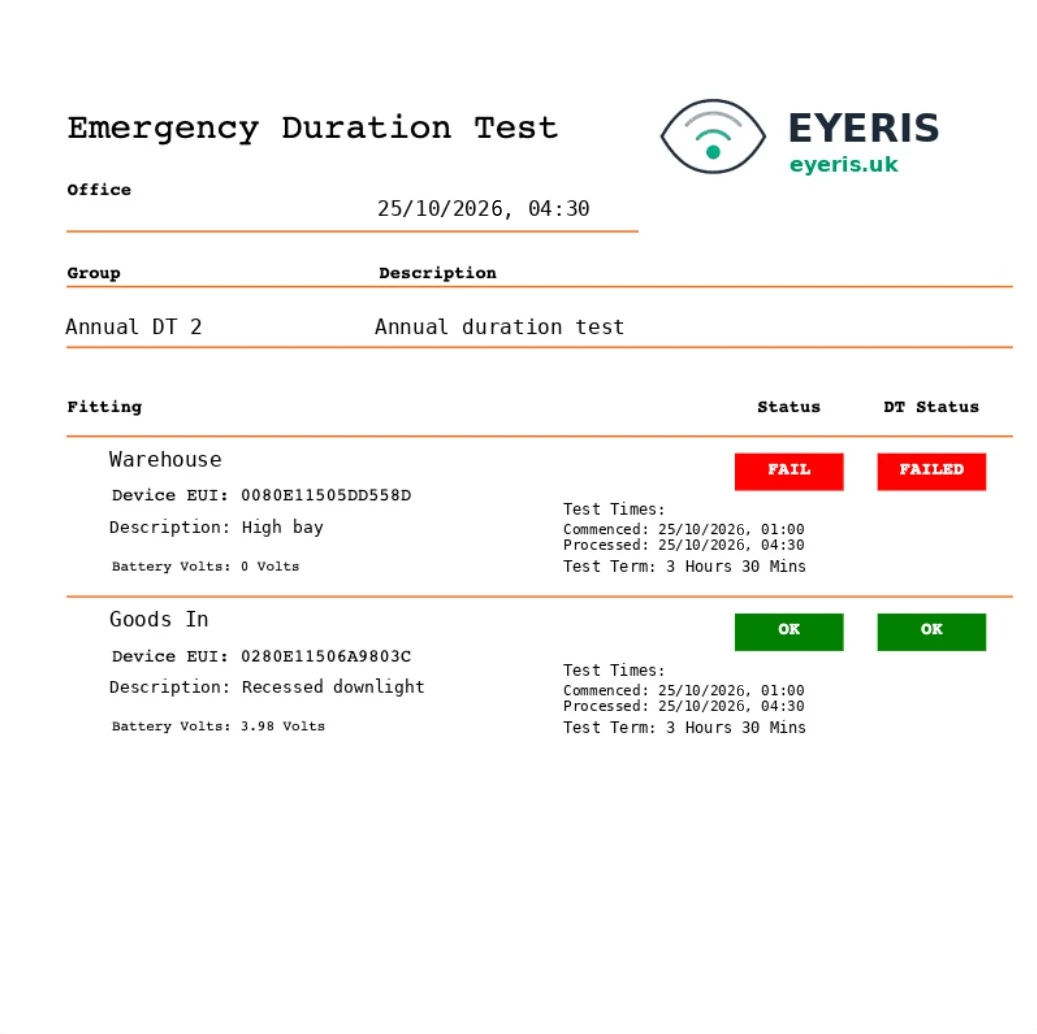

Evidence
Compliance records stored for up to 5 years*
- Per group reporting: one dated report for every scheduled test run.
- Retained and searchable: function and duration records stored within the platform.
- View, download, email: a PDF report is sent on completion to users with alerting enabled.
*Storage period depending on plan.

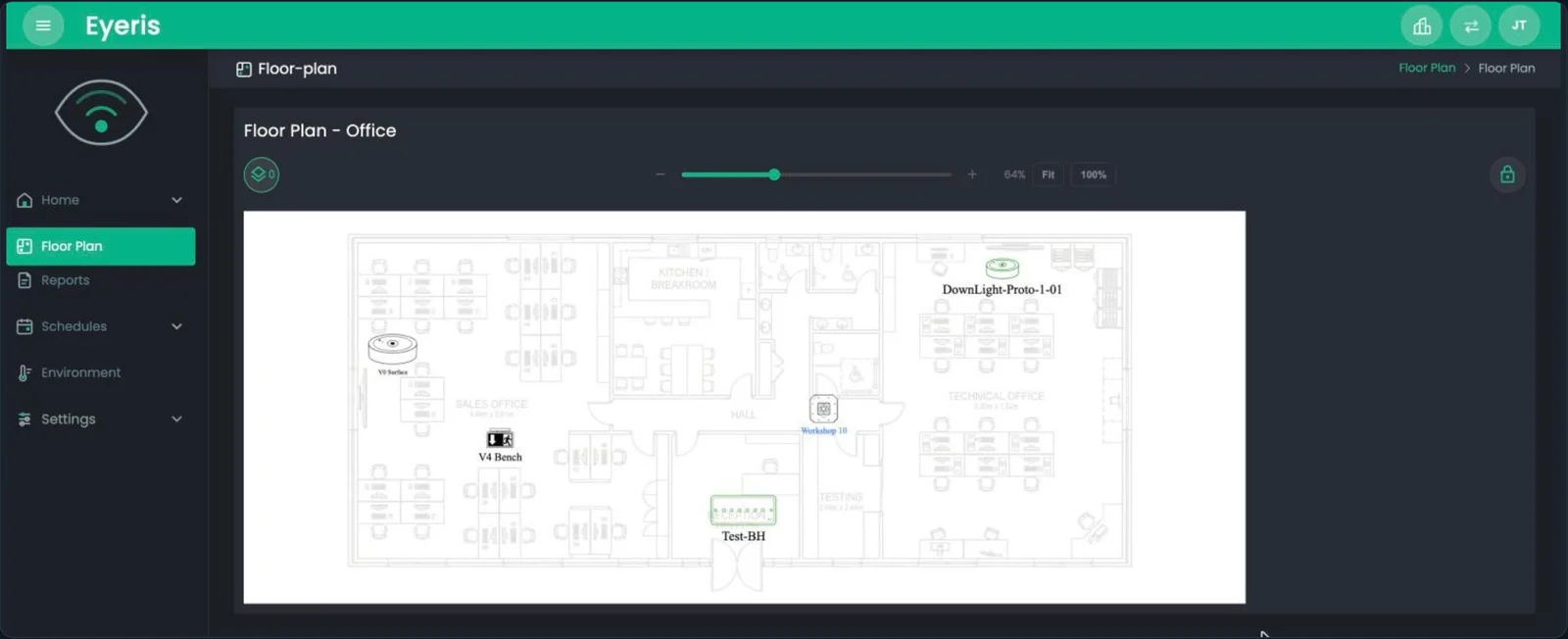

See every device, act on every fault
Each device's status is stored independently, and any change is noted in its history, where an engineer can add context for the resolution of a fault.

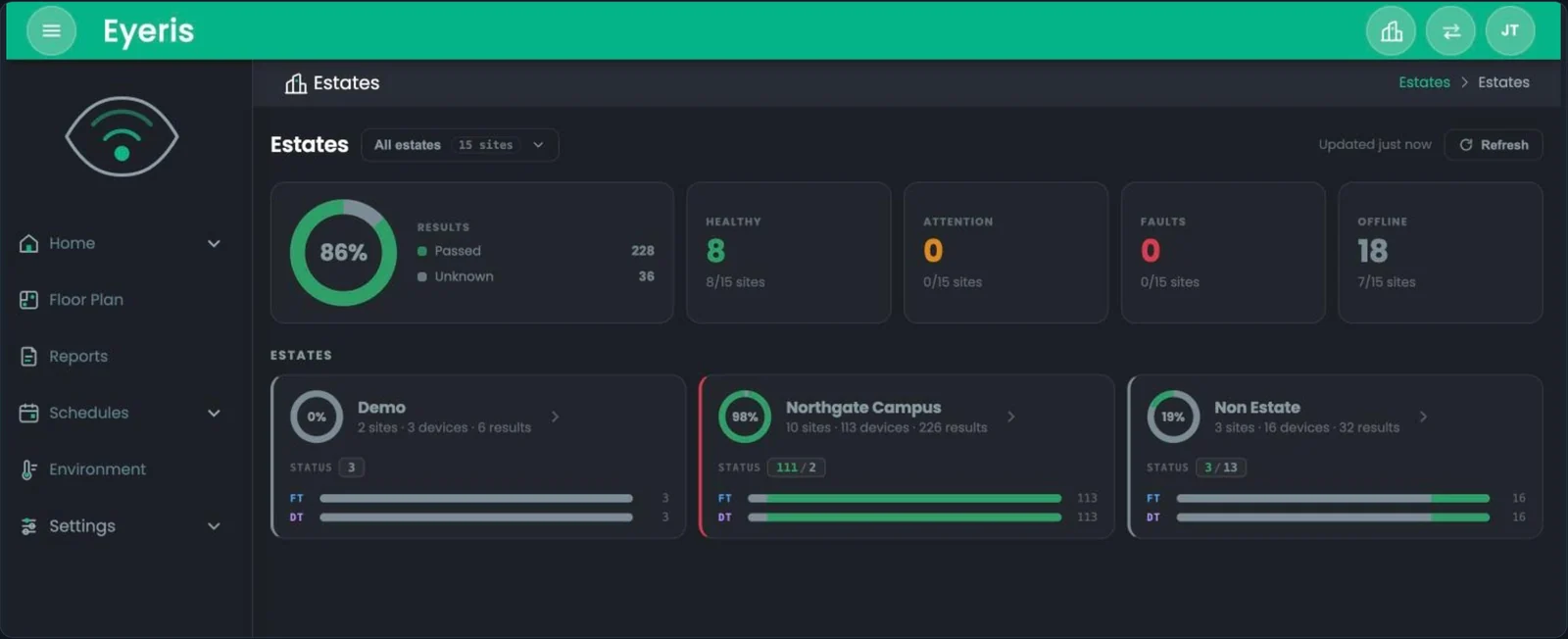

Estates: every site in one view*
Estates provides an overview of all the sites you manage, so you can focus on the sites that need your attention.
- Single pane of glass: every site you manage in one simple view.
- Compliance: overall compliance across the estate at a glance.
- Focus: open any site and work exactly as you would on its own.
*Estates is optional: it is part of the Managed Services package, at an additional cost to the base system.
Eyeris-enabled luminaires
| Part number | Colour | Range | Specification | Downloads |
|---|---|---|---|---|
| BHA3-LR | White |  GRANITE Bulkheads | 3W · 350lm · IP65 / IK10 · Maintained / Non-maintained | |
| DLB3-OA1-LR | White |  VISUAL Downlights | 3W · 325lm · Open area (155°) · IP20 & IP54 front face only · Non-maintained | |
| DLA3-S45-LR | White |  MAX Downlights | 3W · 325lm · Spot (45°) | |
| BXA34-LR | White |  SPEEDY BOX Exit Sign Boxes | 1.5W · 34m viewing distance · Maintained / Non-maintained | |
| EXA30-LR | White |  VELOCITY BLADE Exit Signs | 1.5W · 30m viewing distance · Maintained / non-maintained | |
| TSA6-LR | White |  Twin Spots | 6W · 1000lm · IP65 / IK10 · Non-maintained | – |
| DLB3-OA1-LR-BLK | Black | VISUAL Downlights | 3W · 325lm · Open area (155°) · IP20 & IP54 front face only · Non-maintained | |
| DLB3-C-LR | White | VISUAL Downlights | 3W · 310lm · Corridor · IP20 & IP54 front face only · Non-maintained | – |
| DLB3-C-LR-BLK | Black | VISUAL Downlights | 3W · 310lm · Corridor · IP20 & IP54 front face only · Non-maintained | – |
| DLB3-S45-LR | White | VISUAL Downlights | 3W · 325lm · Spot (45°) · IP20 & IP54 front face only · Non-maintained | |
| DLB3-S45-LR-BLK | Black | VISUAL Downlights | 3W · 325lm · Spot (45°) · IP20 & IP54 front face only · Non-maintained | |
| DLA3-S45-LR-BLK | Black | MAX Downlights | 3W · 325lm · Spot (45°) | |
| DLA3-OA1-LR | White | MAX Downlights | 3W · 325lm · Open area (155°) | |
| DLA3-OA1-LR-BLK | Black | MAX Downlights | 3W · 325lm · Open area (155°) | |
| DLA3-C-LR | White | MAX Downlights | 3W · 325lm · Corridor | – |
| DLA3-C-LR-BLK | Black | MAX Downlights | 3W · 325lm · Corridor | – |
| CK55-LR-3 | White |  Conversion Modules | 3W · 10-55V DC · Li ion battery | |
| CK55-LR-6 | White | Conversion Modules | 6W · 10-55V DC · Li ion battery | |
| CK300-LR-3 | White | Conversion Modules | 3W · 50-300V DC · Li ion battery | |
| CK300-LR-6 | White | Conversion Modules | 6W · 50-300V DC · Li ion battery |

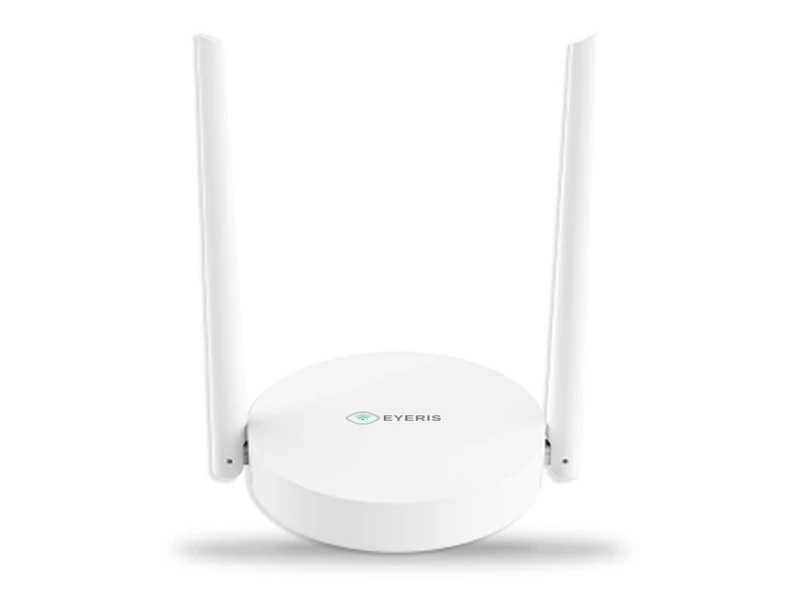

EYERIS Gateway
The gateway is required to link Eyeris devices to Eyeris Core.
One gateway covers a small building; larger or awkward sites take several.*
A gateway will collect telemetry from every Eyeris device in range.
- Ethernet
- Wi-Fi
- 4G
- Indoor LoRaWAN gateway, 8 channels, EU868
- GSM data plan for the 4G backhaul: 1, 3 or 5 years
- Around 2,000 devices, depending on traffic
- Powered by USB-C (5 V) or 5–12 V DC
- Typical 1.3 W, max. 3.1 W
- Ø115 × 21 mm, 158 g, IP30; desktop, wall or ceiling
*Coverage subject to site survey.
| Part number | Description | Backhaul | LoRaWAN | Power | Construction | Downloads |
|---|---|---|---|---|---|---|
| GW1-LR4G | Indoor LoRaWAN gateway | Ethernet, Wi-Fi, 4G | 8 channels, EU868 | USB-C or 5–12 V DC | IP30, desktop, wall or ceiling | |
| GWD-1 | 1 year GSM data | – | – | – | – | – |
| GWD-3 | 3 year GSM data | – | – | – | – | – |
| GWD-5 | 5 year GSM data | – | – | – | – | – |
Why must you comply?
The duty sits with the responsible person, and the evidence is expected to be there when it is asked for.
People first
A failed luminaire is only discovered when it is needed most: a power failure or, worst case, a fire.
A legal duty
Fire safety legislation places the duty on the responsible person, not on the contractor.
No record, no defence
Tests are expected to be carried out and logged, ready for fire safety inspectors, insurers and compliance audits.
Enforcement
Shortfalls can bring notices, and serious breaches can lead to fines or prosecution.
Act now
Don't delay, get started today
Arrange a demo with us to see how Eyeris ensures you are compliant, and remain compliant.
Simple rollout
Wireless LoRaWAN, scanned and configured in seconds per device.
Live status
Every device reports any change.
Automated testing
Function and duration tests run in groups, so the site keeps cover.
Compliance records
A dated PDF report for every scheduled test, retained and searchable.
