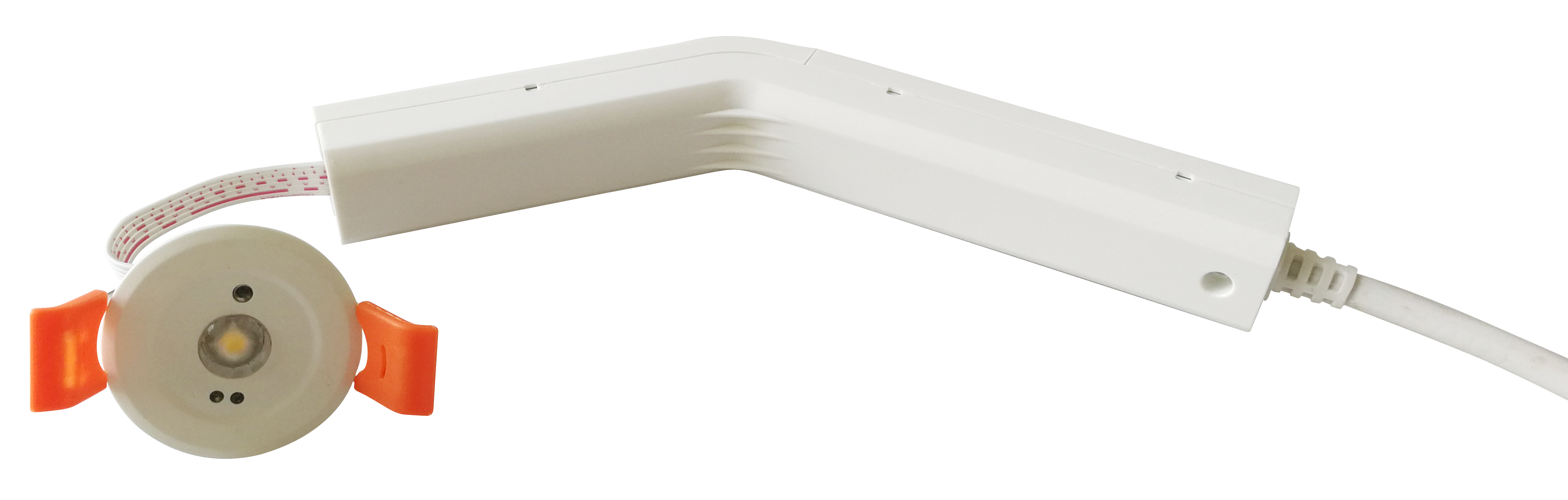

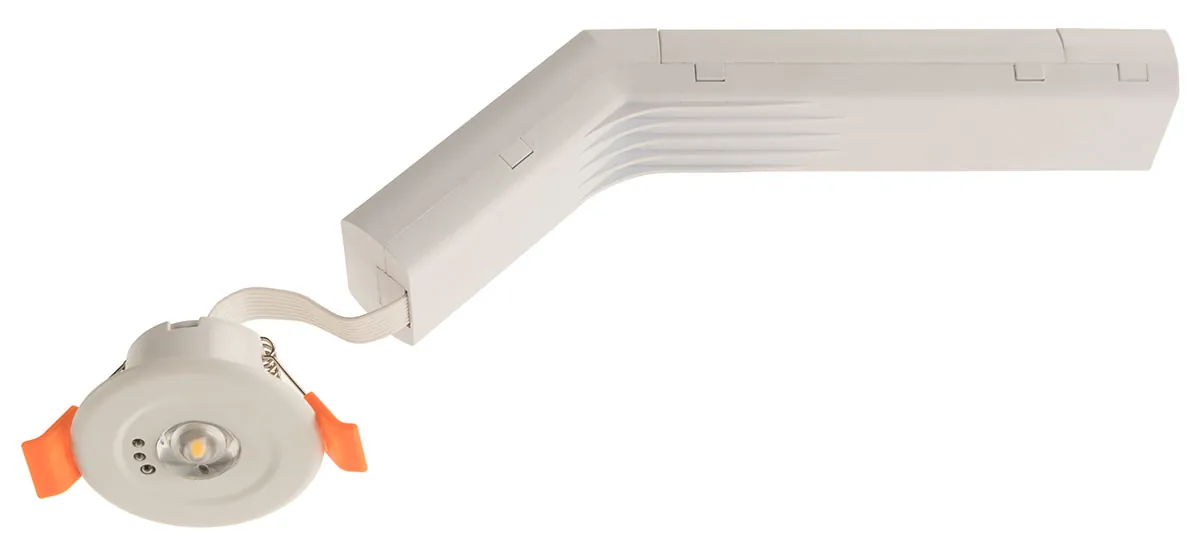

MAX Emergency LED Downlights
Our LIA certified Emergency Downlight range includes a surface mount version (VISUAL) and a recessed mount version (MAX). Both versions are non-maintained and offer a staggering 325 lumens for the 3W version, all thanks to the design and technology that drives all our products.
All emergency downlights, recessed and surface mounted, benefit from a range of well-designed optics (open area, corridor and spot angles) to provide a wide variety of applications and installations. These can be easily applied for corridors, rooms, paths, open-space areas and point of emphasis.
MAX downlights comply with current standards, including BS EN 60598-2-22, and come with the full range of test methods: Manual Test (MT), Advanced Self-Test (AST) and Eyeris automated testing.
*To facilitate the emergency lighting design according to BS5266 these products are manufactured to be fully compliant with BS 60598-2-22 standard and are designed to IP20 Ingress Protection, meaning that they can be used safely in indoor applications.
Download the datasheet, photometry files (IES and LDT) and spacing tables for each product below.
| Part number | Colour | Power Output | Lumen output | Lens | Testing facility | Downloads |
|---|---|---|---|---|---|---|
| DLA3-S45-LR | White | 3W | 325lm | Spot (45°) | Eyeris | |
| DLA3-S45-LR-BLK | Black | 3W | 325lm | Spot (45°) | Eyeris | |
| DLA3-OA1-LR | White | 3W | 325lm | Open area (155°) | Eyeris | |
| DLA3-OA1-LR-BLK | Black | 3W | 325lm | Open area (155°) | Eyeris | |
| DLA3-C-LR | White | 3W | 325lm | Corridor | Eyeris | – |
| DLA3-C-LR-BLK | Black | 3W | 325lm | Corridor | Eyeris | – |
| DLA3-S45-MT | White | 3W | 325lm | Spot (45°) | Manual Test (MT) | |
| DLA3-S45-AST | White | 3W | 325lm | Spot (45°) | Advanced Self Test (AST) | |
| DLA3-S45-AST-BLK | Black | 3W | 325lm | Spot (45°) | Advanced Self Test (AST) | |
| DLA3-S45-PST | White | 3W | 325lm | Spot (45°) | Programmable Self Test (PST) | |
| DLA3-OA1-MT | White | 3W | 325lm | Open area (155°) | Manual Test (MT) | |
| DLA3-OA1-MT-BLK | Black | 3W | 325lm | Open area (155°) | Manual Test (MT) | |
| DLA3-OA1-AST | White | 3W | 325lm | Open area (155°) | Advanced Self Test (AST) | |
| DLA3-OA1-AST-BLK | Black | 3W | 325lm | Open area (155°) | Advanced Self Test (AST) | |
| DLA3-OA1-PST | White | 3W | 325lm | Open area (155°) | Programmable Self Test (PST) | |
| DLA3-C-MT | White | 3W | 325lm | Corridor | Manual Test (MT) | – |
| DLA3-C-AST | White | 3W | 325lm | Corridor | Advanced Self Test (AST) | – |
| DLA3-C-AST-BLK | Black | 3W | 325lm | Corridor | Advanced Self Test (AST) | – |
| DLA3-C-PST | White | 3W | 325lm | Corridor | Programmable Self Test (PST) | – |
| DLA3-S45-DL | White | 3W | 325lm | Spot (45°) | DALI-2 | – |
| DLA3-OA1-DL | White | 3W | 325lm | Open area (155°) | DALI-2 | – |
| DLA3-C-DL | White | 3W | 325lm | Corridor | DALI-2 | – |
Please note that the self-test function is disabled by default. If the self-test function is required, please use the ARC remote control to enable it.
For black head versions, add the -BLK suffix to the part code.
Questions

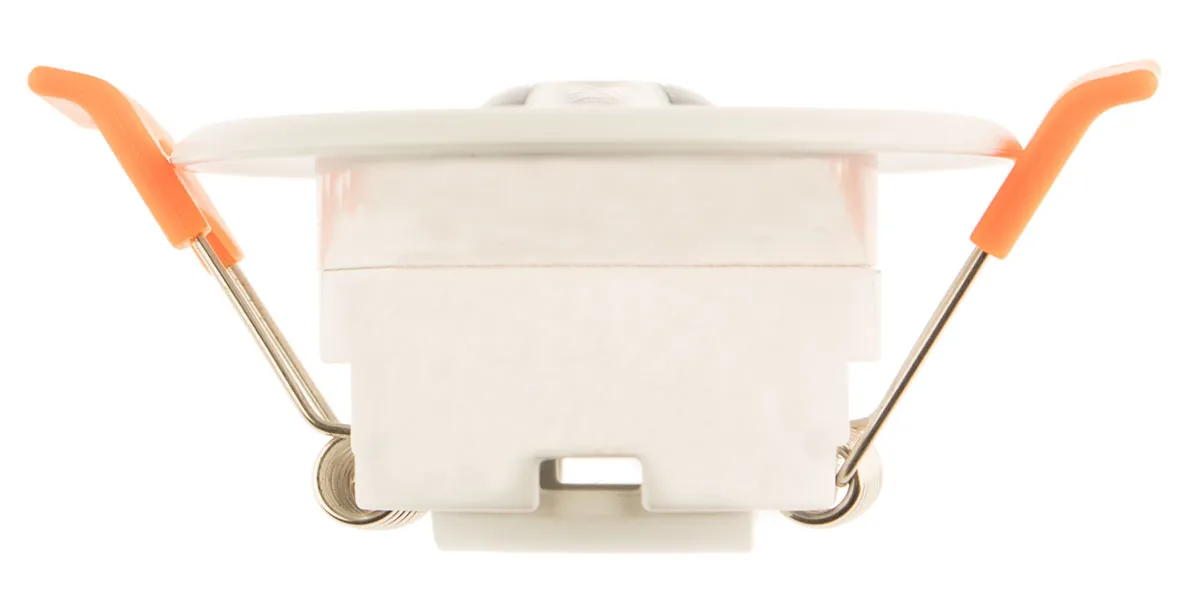

Are MAX downlights recessed?
Yes, MAX is our recessed emergency downlight. For a ceiling surface mount, see VISUAL; for shallow voids, Mini MAX.
Which lenses do MAX downlights come with?
Spot (45°), open area (155°) and corridor, for corridors, rooms, paths, open spaces and points of emphasis such as fire extinguishers.
How much light do MAX downlights give?
325 lumens at 3W, with every lens.
How long do MAX downlights last in a power cut?
3 hours. MAX downlights give constant emergency light for the full 3-hour duration, and the battery recharges in 8 hours (the first charge takes up to 16).
Are MAX downlights maintained?
No, they are non-maintained: they light only when the mains fails. They are IP20, for indoor use.
Which test options do MAX downlights come in?
Manual Test (MT); Advanced Self-Test (AST); Programmable Self-Test (PST, set up with the PRC remote); Eyeris automated testing (DLA3-S45-LR, DLA3-OA1-LR and DLA3-C-LR, white or black); and DALI-2. With AST the fitting tests itself: a 30-second functional test every week and a full duration test every 52 weeks. Test Regimes compares them.

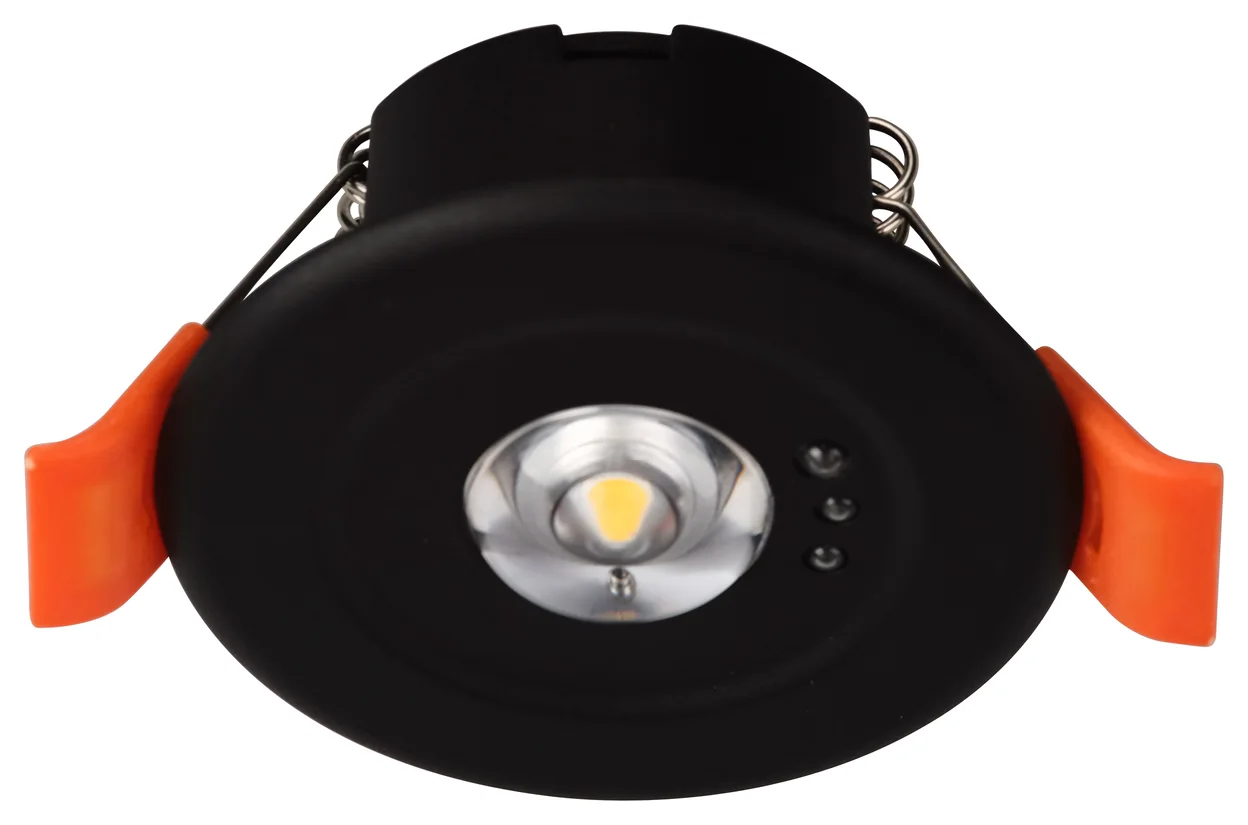

Do MAX downlights come in black?
Yes. Black versions: DLA3-S45-AST-BLK, DLA3-OA1-MT-BLK, DLA3-OA1-AST-BLK and DLA3-C-AST-BLK, and the Eyeris DLA3-S45-LR-BLK, DLA3-OA1-LR-BLK and DLA3-C-LR-BLK. Every other model is white.
Do MAX downlights work with Eyeris?
Yes: the DLA3-S45-LR (spot), DLA3-OA1-LR (open area) and DLA3-C-LR (corridor), in white or black (-LR-BLK). MAX downlights with Eyeris report to Eyeris over a wireless link, with no extra wiring, and Eyeris runs the function and duration tests to your schedule, alerts you to faults and keeps a dated PDF report of every test. A site needs at least one Eyeris gateway.
What warranty do MAX downlights have?
Up to 5 years on the luminaire and battery. Every product has 1 year as standard, and 5 years from the date of invoice once you register it within 6 months of purchase (a new product, bought from Z10 or an authorised reseller).
Where are the MAX datasheets and photometric files?
On the Specifications & downloads tab, beside each model: its datasheet, and the IES and LDT photometric files and spacing tables where it has them. For help with a layout, ask for our free lighting design advice.
