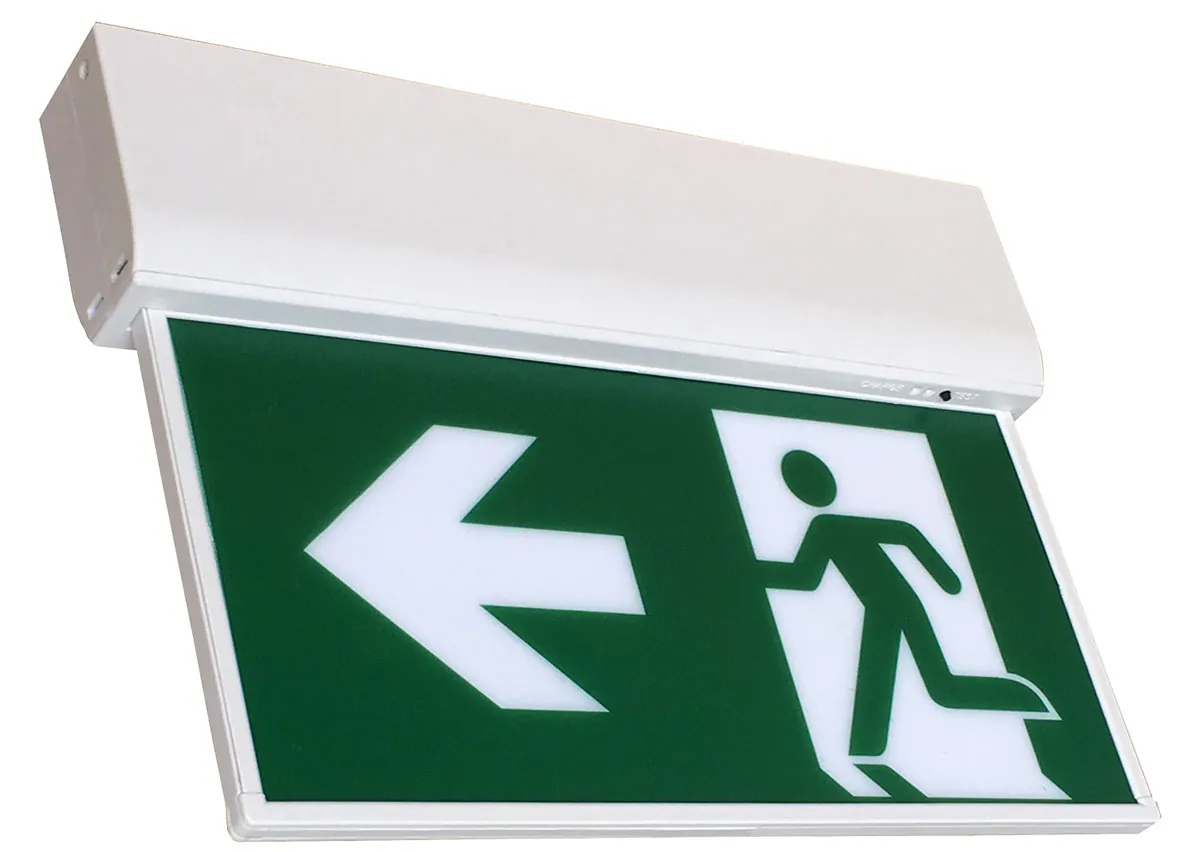

VELOCITY BLADE Emergency LED Exit Signs
Our Emergency Exit Sign uses the same LED technology that powers all our products, to provide the best results by maintaining a low stand-by power consumption (<0.5W). The product can be wired for either maintained or non-maintained operations and is designed to IP20 Ingress Protection, meaning that it can be used safely in indoor applications.
VELOCITY BLADE exit signs are LIA certified, comply with current standards, including BS EN 60598-2-22 and ISO 7010, and come with the full range of test methods: Manual Test (MT), Advanced Self-Test (AST) and Eyeris automated testing.

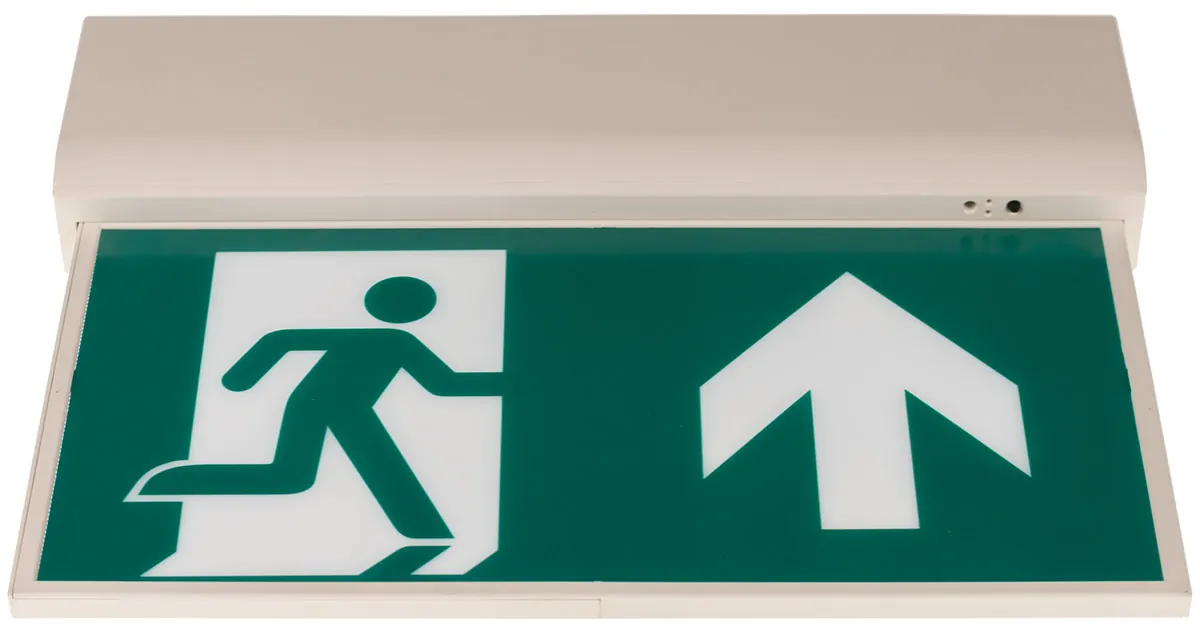

Our Emergency Exit Box provides excellent viewing distances of 30 metres at a low 1.5W and it will be supplied with a standard Arrow Up legend. Alternative legends are available for purchase. See below.
To meet the most of challenging requirements we have kept all the premium features, like the test button or the recessed kit option that will allow recessed ceiling mounting.
Download the datasheet, photometry files (IES and LDT) and spacing tables for each product below.
| Part number | Colour | Power Output | Viewing Distance | Configuration | Testing facility | Downloads |
|---|---|---|---|---|---|---|
| EXA30-LR | White | 1.5W | 30m | Maintained / non-maintained | Eyeris | |
| EXA30-AST | White | 1.5W | 30m | Maintained / non-maintained | Manual Test (MT) Advanced Self Test (AST) | |
| EXA30-AST-BLK | Black | 1.5W | 30m | Maintained / non-maintained | Manual Test (MT) Advanced Self Test (AST) | |
| EXA30-PST | White | 1.5W | 30m | Maintained / non-maintained | Programmable Self Test (PST) | |
| EXA30-DL | White | 1.5W | 30m | Maintained / non-maintained | DALI-2 | – |
| Part number | Description |
|---|---|
| EXA-D | Exit sign DOWN ARROW legend |
| EXA-RL | Exit sign RIGHT-LEFT ARROW legend |
| EXA-RK | Exit Sign recess kit |
Questions
How far away can the VELOCITY BLADE exit sign be seen?
30 metres, at just 1.5W.
Which legends does VELOCITY BLADE come with?
It comes with an Arrow Up legend. Down arrow (EXA-D) and right-left arrow (EXA-RL) legends are available separately. The signs comply with ISO 7010.
Can VELOCITY BLADE be recessed into a ceiling?
Yes, with the recess kit (EXA-RK). It can also be ceiling mounted, and has a test button.

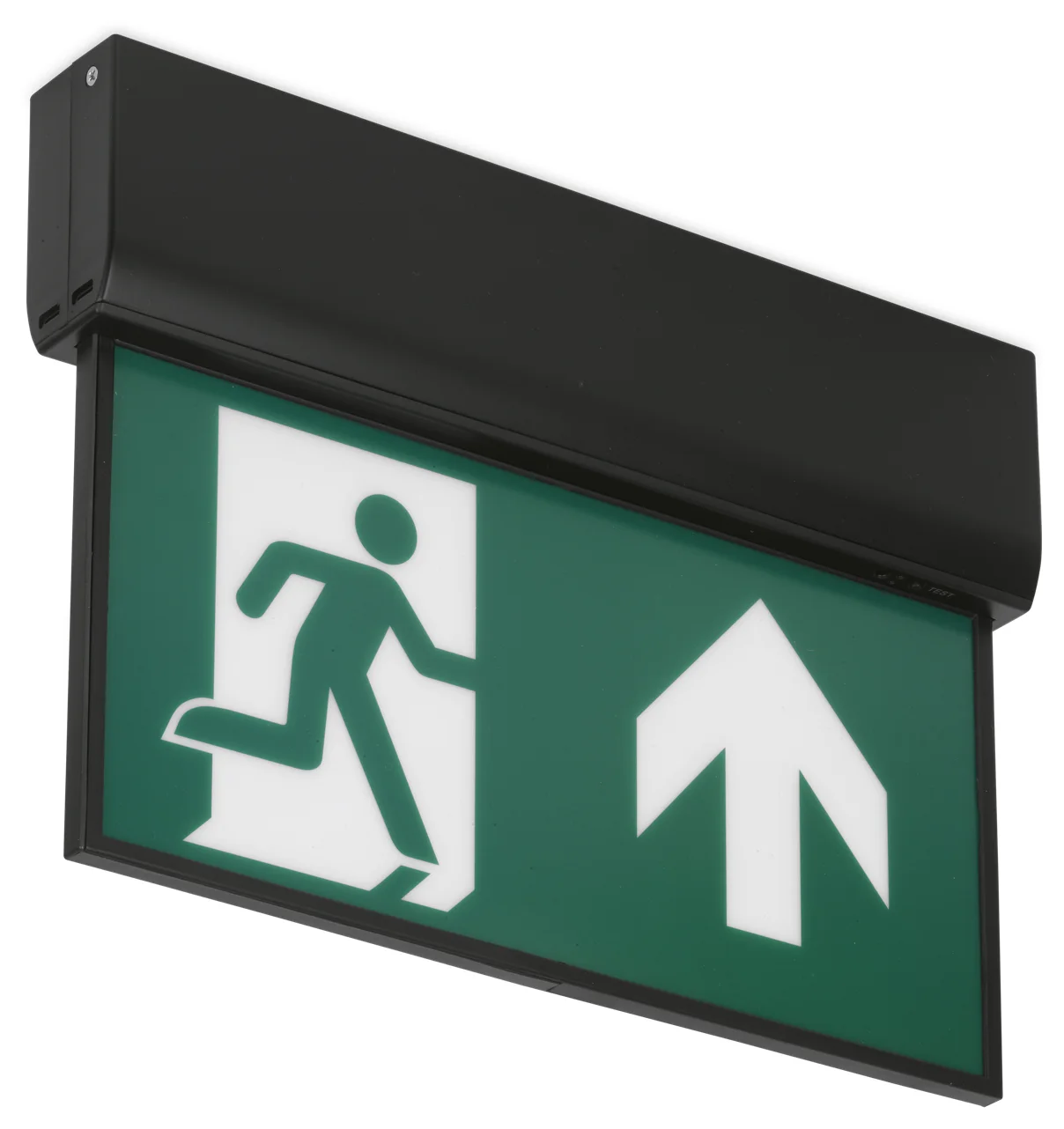

Does VELOCITY BLADE come in black?
Yes: the EXA30-AST-BLK. Every other model is white.
Is VELOCITY BLADE maintained or non-maintained?
Either: it can be wired maintained or non-maintained. It is IP20, for indoor use, and its standby power is under 0.5W.
How long does VELOCITY BLADE last in a power cut?
3 hours. VELOCITY BLADE exit signs give constant emergency light for the full 3-hour duration, and the battery recharges in 8 hours (the first charge takes up to 16).
Which test options does VELOCITY BLADE come in?
Manual Test and Advanced Self-Test (AST) (EXA30-AST); Programmable Self-Test (EXA30-PST, with the PRC remote); Eyeris automated testing (EXA30-LR); and DALI-2 (EXA30-DL). With AST the fitting tests itself: a 30-second functional test every week and a full duration test every 52 weeks.
What warranty does VELOCITY BLADE have?
Up to 5 years on the luminaire and battery. Every product has 1 year as standard, and 5 years from the date of invoice once you register it within 6 months of purchase (a new product, bought from Z10 or an authorised reseller).
Where is the VELOCITY BLADE datasheet?
On the Specifications & downloads tab, beside each model: its datasheet, and the IES and LDT photometric files and spacing tables where it has them. For help with a layout, ask for our free lighting design advice.
