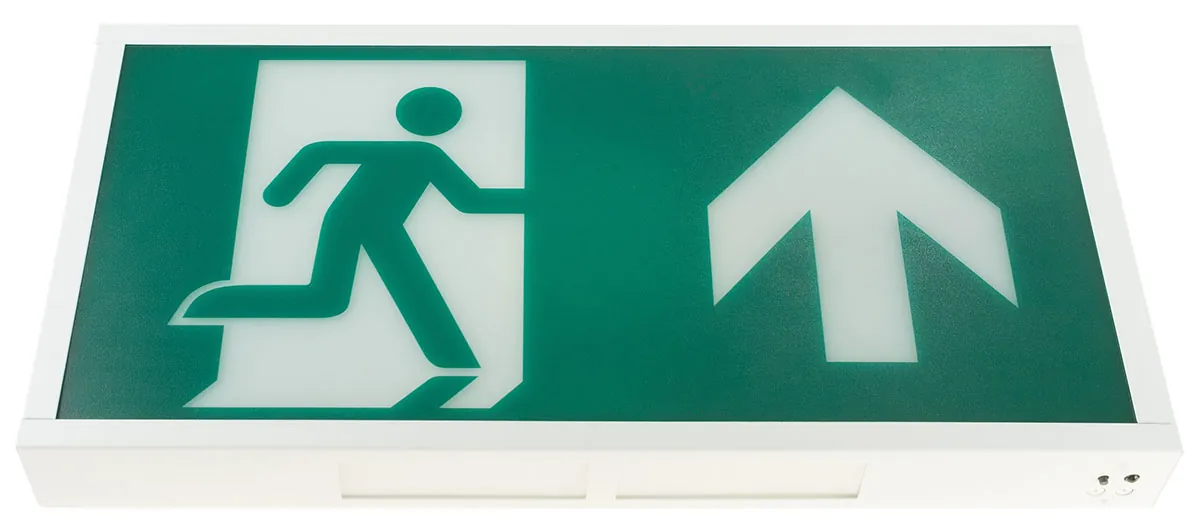

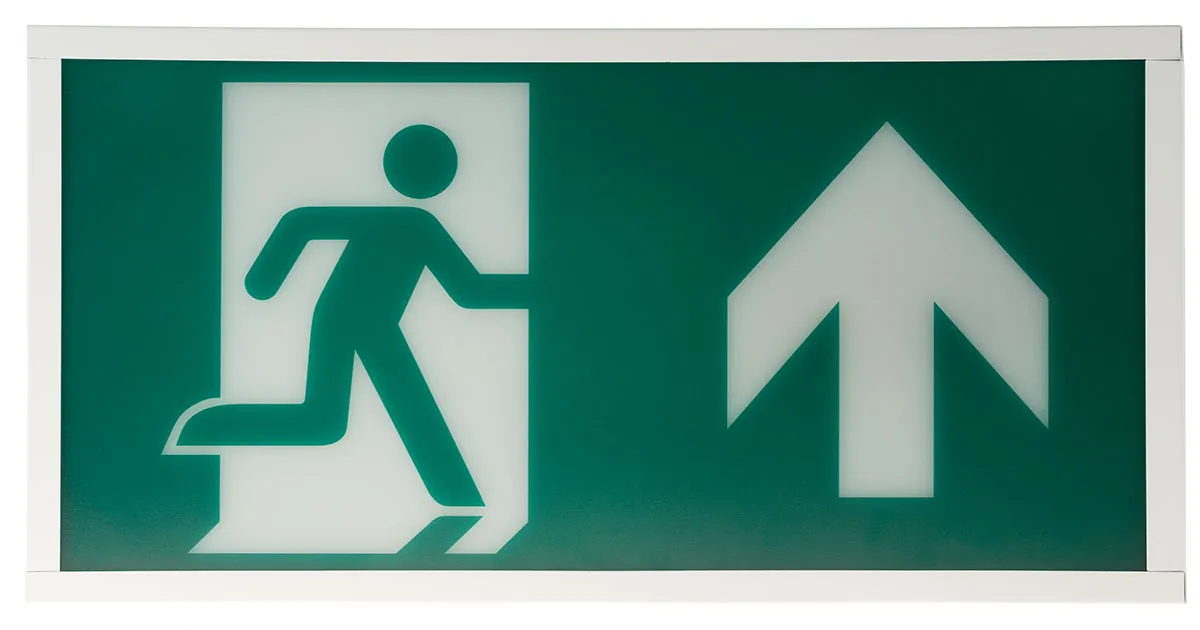

SPEEDY BOX Emergency LED Exit Sign Boxes
Our LIA certified Emergency Exit Box benefits from the same design and technology that powers all our products, to provide the best results by maintaining an outstandingly low stand-by power consumption (<0.5W). The product can be wired for either maintained or non-maintained operations and is designed to IP20 Ingress Protection, meaning that it can be used safely in indoor applications.
SPEEDY BOX exit signs comply with current standards, including BS EN 60598-2-22 and ISO 7010, and come with the full range of test methods: Manual Test (MT), Advanced Self-Test (AST) and Eyeris automated testing.
The Emergency Exit Box can be mounted either on walls and provides excellent viewing distances of 34 metres at a low power of 1.5W, supplied as standard with an Arrow Up legend. Alternative legends are available for purchase. See below.
To meet the most of challenging requirements we have kept all the premium features, like the integrated 40% downlight and the classic test button.
Download the datasheet, photometry files (IES and LDT) and spacing tables for each product below.
| Part number | Power Output | Viewing Distance | Configuration | Testing facility | Downloads |
|---|---|---|---|---|---|
| BXA34-LR | 1.5W | 34m | Maintained / Non-maintained | Eyeris | |
| BXA34-AST | 1.5W | 34m | Maintained / Non-maintained | Manual Test (MT) Advanced Self Test (AST) | |
| BXA34-PST | 1.5W | 34m | Maintained / Non-maintained | Programmable Self Test (PST) | |
| BXA34-DL | 1.5W | 34m | Maintained / Non-maintained | DALI-2 | – |
| Part number | Description |
|---|---|
| BXA-D | Exit sign metal box DOWN ARROW legend |
| BXA-R | Exit sign metal box RIGHT ARROW legend |
| BXA-L | Exit sign metal box LEFT ARROW legend |
Questions
How far away can the SPEEDY BOX exit sign be seen?
34 metres, at just 1.5W.
Which legends does SPEEDY BOX come with?
It comes with an Arrow Up legend. Down, right and left arrow legends are available separately (BXA-D, BXA-R and BXA-L), and can be added to your enquiry from the Specifications & downloads tab. The signs comply with ISO 7010.
How is SPEEDY BOX mounted?
On a wall. It has an integrated 40% downlight and a test button.
Is SPEEDY BOX maintained or non-maintained?
Either: it can be wired maintained or non-maintained. It is IP20, for indoor use, and its standby power is under 0.5W.
How long does SPEEDY BOX last in a power cut?
3 hours. SPEEDY BOX exit signs give constant emergency light for the full 3-hour duration, and the battery recharges in 8 hours (the first charge takes up to 16).
Which test options does SPEEDY BOX come in?
Manual Test and Advanced Self-Test (AST) (BXA34-AST); Programmable Self-Test (BXA34-PST, with the PRC remote); Eyeris automated testing (BXA34-LR); and DALI-2 (BXA34-DL). With AST the fitting tests itself: a 30-second functional test every week and a full duration test every 52 weeks.
Which standards does SPEEDY BOX meet?
It is LIA certified and complies with BS EN 60598-2-22 and ISO 7010.
What warranty does SPEEDY BOX have?
Up to 5 years on the luminaire and battery. Every product has 1 year as standard, and 5 years from the date of invoice once you register it within 6 months of purchase (a new product, bought from Z10 or an authorised reseller).
Where is the SPEEDY BOX datasheet?
On the Specifications & downloads tab, beside each model: its datasheet, and the IES and LDT photometric files and spacing tables where it has them. For help with a layout, ask for our free lighting design advice.
