Conversion Modules

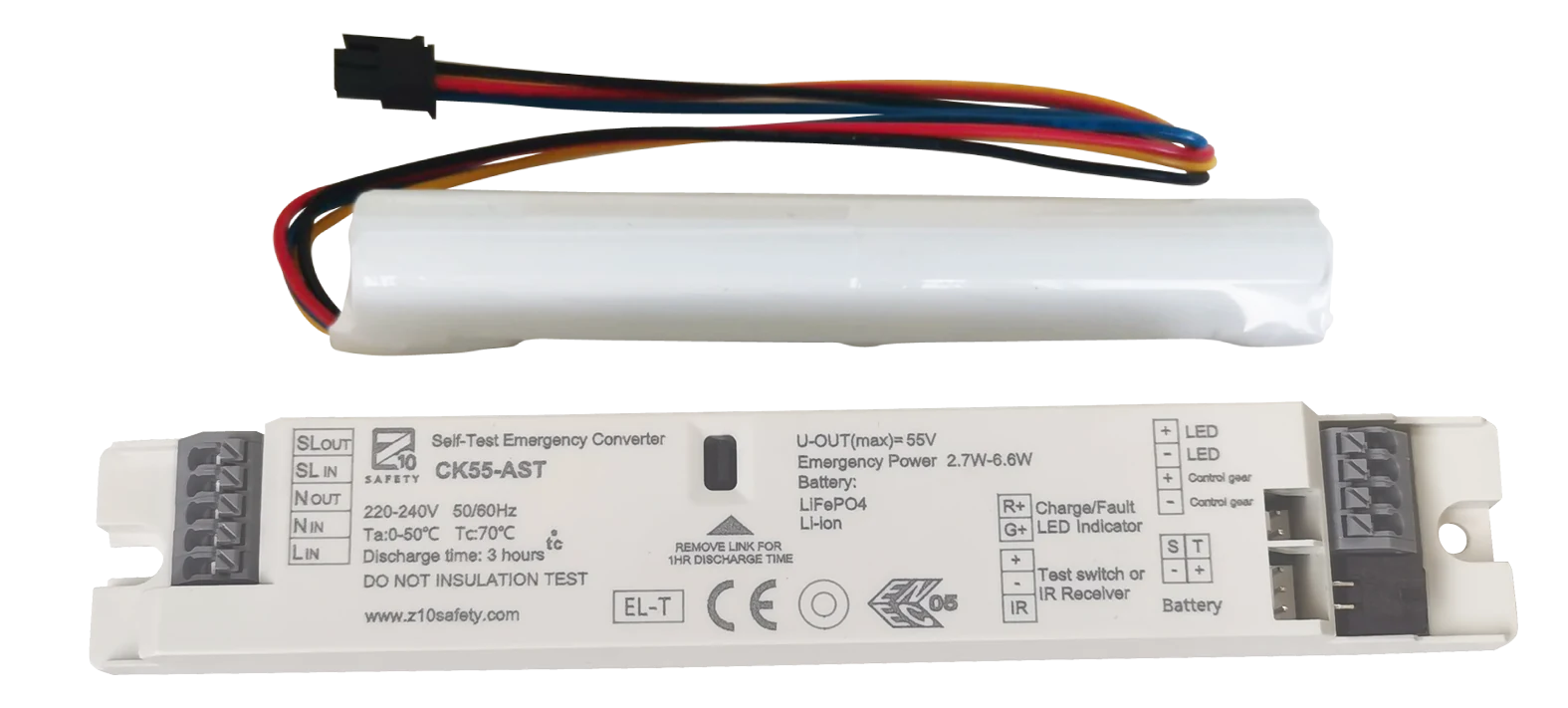

The Advanced Self-Test EM-converter is a range of high quality 3 or 1 hour emergency lighting conversion modules designed to drive a very wide range of LED loads and circuits in multiple applications. Standard and self-test options available. Compatible with LiFePO4 and Li-ion batteries
Key Features

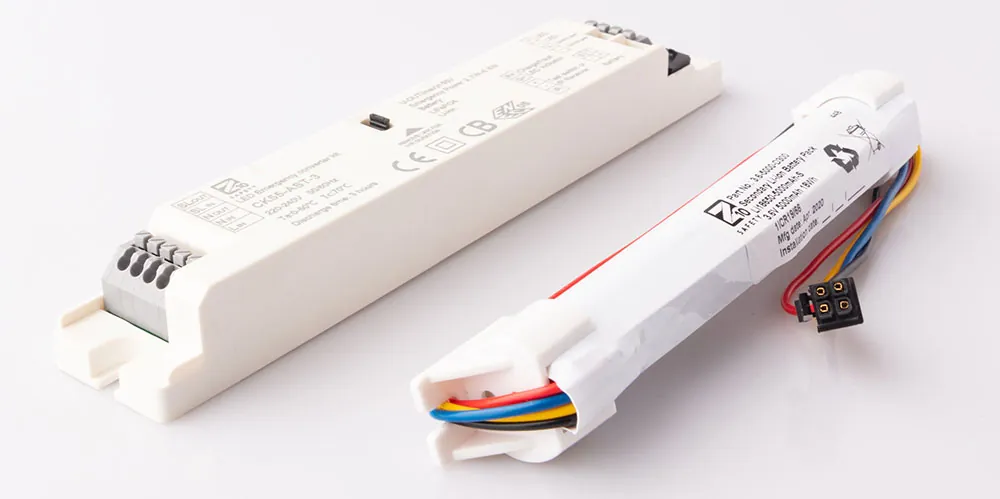

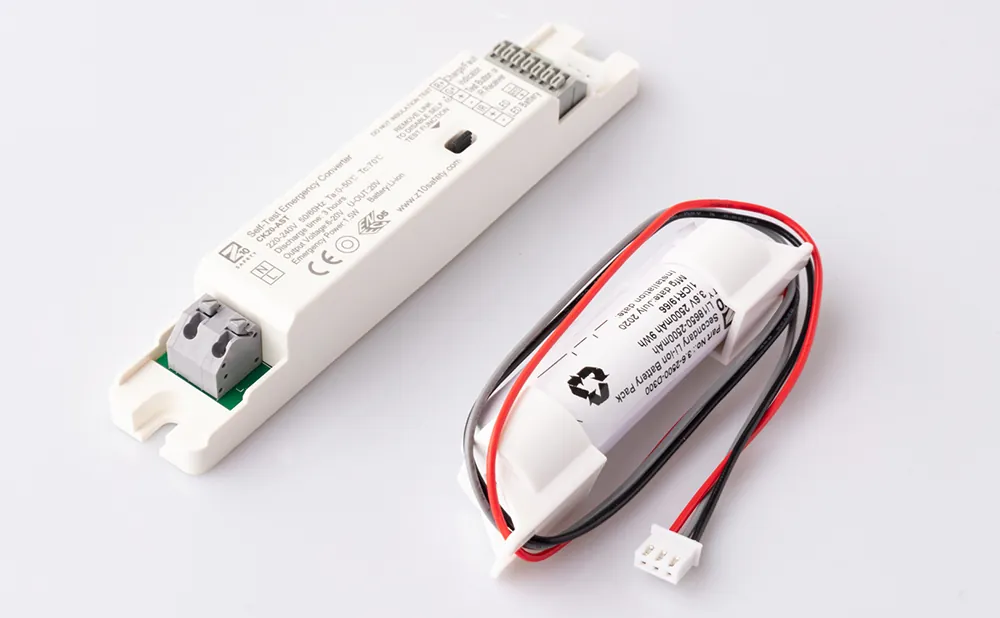

- Complete kit for 3 or 1 hour emergency lighting
- Designed for wide range of LED loads (up to 300V LED forward voltage)
- Compatible with LiFePO4 and Li-ion batteries
- Up to 5 year warranty* on the EM converter and battery
- Compliant with BS EN 60598-2-22
- Remote control available
- Self-test function can be enabled with remote control ARC
- Supplied with high intensity bi-colour LED indicator for self-contained luminaires
- Small dimensions for easy integration (21.4mm x 184.7mm)
Download the user guide for each product below.
| Part number | Power | Testing facility | Voltage | Battery | Downloads |
|---|---|---|---|---|---|
| CK55-LR-3 | 3W | Eyeris | 10-55V DC | Li ion battery | |
| CK55-LR-6 | 6W | Eyeris | 10-55V DC | Li ion battery | |
| CK300-LR-3 | 3W | Eyeris | 50-300V DC | Li ion battery | |
| CK300-LR-6 | 6W | Eyeris | 50-300V DC | Li ion battery | |
| CK55-AST-3 | 3W | Advanced Self Test (AST) | 10-55V DC | Li ion battery | |
| CK55-AST-6 | 6W | Advanced Self Test (AST) | 10-55V DC | Li ion battery | |
| CK300-AST-3 | 3W | Advanced Self Test (AST) | 50-300V DC | Li ion battery | |
| CK300-AST-6 | 6W | Advanced Self Test (AST) | 50-300V DC | Li ion battery | |

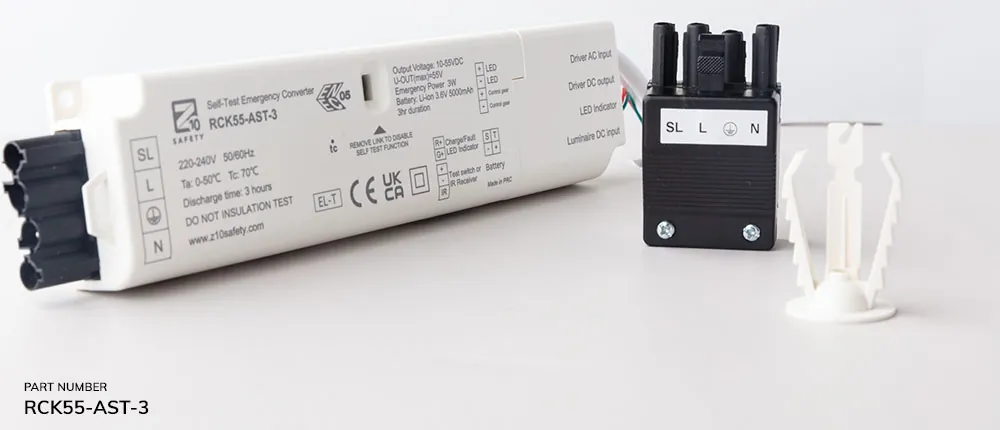

| RCK55-AST-3 | 3W | Advanced Self Test (AST) | 10-55V DC | Li ion battery | |
| CK20-AST-1 | 1.5W | Advanced Self Test (AST) | 5-20V DC | Li ion battery | |
| CK55-AST-3-LP4 | 3W | Advanced Self Test (AST) | 10-55V DC | LiFePO4 battery | – |
| CK55-AST-6-LP4 | 6W | Advanced Self Test (AST) | 10-55V DC | LiFePO4 battery | – |
| CK300-AST-3-LP4 | 3W | Advanced Self Test (AST) | 50-300V DC | LiFePO4 battery | – |
| CK300-AST-6-LP4 | 6W | Advanced Self Test (AST) | 50-300V DC | LiFePO4 battery | – |
Questions
What does an emergency conversion module do?
It turns an LED luminaire into an emergency luminaire: a complete kit that drives the LEDs from its own battery for 3 hours, or 1 hour, when the mains fails.
Which LED loads will they drive?
A very wide range, up to 300V LED forward voltage: CK20 for 5-20V DC (1.5W), CK55 for 10-55V DC (3W or 6W) and CK300 for 50-300V DC (3W or 6W).
Which batteries do they use?
Lithium-ion as standard, or LiFePO4 (lithium iron phosphate) on the models ending -LP4.
Which test options are there?
Advanced Self-Test (AST), which can be switched on with the ARC remote control, and Eyeris automated testing (CK55-LR-3, CK55-LR-6, CK300-LR-3 and CK300-LR-6), which reports to Eyeris over a wireless link.
How big are they?
Small, for easy fitting: 21.4 x 184.7 mm. Each comes with a high-intensity bi-colour LED indicator for self-contained luminaires.
Which standards do they meet?
They comply with BS EN 60598-2-22.
What warranty do they have?
Up to 5 years on the converter and battery. Every product has 1 year as standard, and 5 years from the date of invoice once you register it within 6 months of purchase (a new product, bought from Z10 or an authorised reseller).
Where are the user guides?
On the Specifications & downloads tab, and on Product Guides.
